In a 2D game Y is up. Going from 2D to 3D would make sense to add another dimension forward to account for depth.
However if you start with a map of a 3D surface then North is Y and East is X you’d add Z to account for elevation like everybody making maps would.
I guess it depends on how you look at it.
Yes, but please just make it follow the right hand rule…
Which one?
(Technically all the same, I know).
The first? I dont know… They all look weird since the finger axes dont intersect properly.
Removed by mod
Right hand rule
deleted by creator
If I were to make a thing where I got to decide which one is which I’d pick the 2nd.
I don’t have a strong opinion and I’ll just pick whatever the default is.
There are others, where there are way more arrows, and they are not at all orthogonal…

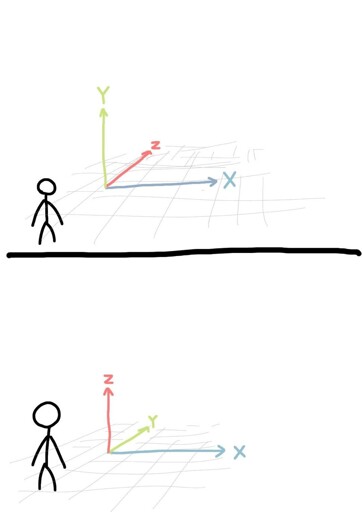

For me it’s the top one. In a web browser, when using CSS and JavaScript, x is the horizontal axis, y is the vertical axis, and z is for depth. Hence the
z-indexCSS property which determines depth.I would say the bottom one only makes sense if the stick figure were to hover in the air and look downwards. Then the z axis would be depth for him.
There are clearly more than two. In the top image that z-axis is pointing in the wrong direction.
Z pointing in the other direction is the same as the bottom image, just rotated.
No, the bottom image correctly follows the right hand rule (1,2,3=x, y, z on your thumb and two fingers at right angles), whereas the top one is wrong because it doesn’t. It would be OK if the z axis in the top one pointed towards us. Top one would be a mirror image as well as rotation of the bottom one.
Right, that’s what I said: if Z in the top image were pointing the opposite direction (i.e. if it followed the right hand rule), it would be the same as the bottom image. Rotation is irrelevant; only handedness matters.
I think the comic is trying to illustrate the difference between people who consider Y to be the vertical axis or z to be the vertical axis.
I think the right hand rule vs left hand rules coordinate systems was a mistake.
Oh I’m so sorry, I misunderstood you completely; now that I reread it, I see I have been a dufus!
Y will always be up for me thanks to Minecraft
Z is always depth. Both are correct but define different perspectives. Top is looking across the landscape from an arbitrary floating perspective, bottom is looking down with anchored mapping to the surface.
Good answer. Many posts are people saying “my approach is the right one, other people are irredeemable morons who should burn in hell”, but you’re right, it depends on your perspective.
Smh I was fine with both. The upper one reminded me of the X Y axis we use to represent functions in maths. While the lower one represents altitude on a 3D map.
Invert y axis is the first option I tick in every game
Spent most my life working in a 3d environment… need to reverse that thing for a controller every single time
yep. in 2 dimensions, nobody really debates on whether x or y should point up, so i kinda think the debate about z stems from whether one thinks we should put the xy plane horizontally (like a sheet of paper on a desk), or vertically (like a chalkboard).
does any software default to making x be the vertical axis?
Top one is incorrect. Z needs to point outwards.
Z always points outwards
There are three kinds of people…
Actually…
Also Minecraft in Y-Up
I’m not getting left handed vs right handed. Right handed means negative values go right? Why would anyone do that?
Eh sort of? It’s all a matter of perspective. In Blender which uses a right hand system, when you view from the side, right is positive Y, up is positive Z, and towards the user is positive X.
But looking from above, positive X is right, positive Y is up, and positive Z is towards the camera. Obviously if you rotate the camera to be viewing from the negative side of the axis some directions get flipped.
Basically if you’re axis aligned, things work out the way you would expect.
But then should the little axis depictions in OP be swapped?
Yeah the first one is a left handed coordinate system.
Right handed means that when you curl the fingers on your right hand from +X towards +Y, your thumb points towards +Z.
Someone else was explaining how to tell left from right handed. Buy why is it important? If you do math and physics, you almost certainly would use a right hand system. That means all formulas are derived with that in mind. If you try to use them in the left handed system, you are going to have a horrible time trying to figure out which of all terms need to have their sign flipped.
Oh dear Lord.
deleted by creator
Tradition, 3d videogames started doing it like that because of how computers worked 40 years ago, then devs got used to think about 3d space that way and it stuck. Essentially videogames think about visual depth. And yes, the physics engines for videogames usually account for that and use their own transformations of formulas because they are rarely simulating anything more complex than rigid body physics. Advanced simulations aren’t any harder for devs, all the transformations are abstracted away with libraries.
In the end they are just reference frames and up is whatever you want it to be. As Wikipedia puts it eloquently: “Unlike most mathematical concepts, the meaning of a right-handed coordinate system cannot be expressed in terms of any mathematical axioms. Rather, the definition depends on chiral phenomena in the physical world, for example the culturally transmitted meaning of right and left hands, a majority human population with dominant right hand, or certain phenomena involving the weak force.”
deleted by creator
Not really. Youtuber Acerola has a great series on shader programming and dealing with negative numbers is a non-factor. The advantage of working with computers is that it abstracts that complexity away. You program with high level concepts, a dev rarely deals with direct calculations, unless they are actually writing the fundamental apis for it, like DX or Vulkan. Much less copy-paste formulas. It gets complicated fast, but the abstraction keeps it simple for the developer, like, the math is perhaps the easiest part of programming computer graphics.
deleted by creator
Ace is a decent watch. Shit post quality video energy, that’s information dense. Always gonna second an Acerola suggestion.
Dwarf Fortress goes with Blender and the others
Z up all the way because my 3d printer but why is Minecraft y-up D:
I may be wrong, but I believe mc Java is left handed and bedrock is right handed, both with Y as height
I don’t really play bedrock and on Java I don’t really pay attention to the coords.
Invalid diagram. FreeCAD demands representation.
Unreal Engine is switching to Y-up
Thank god, this is the one true coordinate system
Personally I feel limited if I’m working in anything else than a non-euclidean coordinate system
That’s…not the problematic part there, like at all.
There’s a problematic part ?
A left handed coordinate system is absolute blasphemy.
ah ! well. I don’t use any of the programs that are left handed so I can’t say I’ve ever had to struggle with I/O shenanigans, if that’s what you’re talking about. But you’re leaving me guessing, so not sure what else I can say
unreal georg is an anomaly and should not be counted
deleted by creator
I know Z as upward. X and Y were always on the base plane representing length and width. Z comes in being all like, “Now we’re being 3D!”
So wherever the “floor” is, represented with gridlines, boundary, canvas, etc. that’s where they live. That is Flatland where there is no up or down. It is 2D where most of my work is. If you try tell me Y is Z, I’d ask “wtf is a Z?”
But what if instead of adding a third dimension by going UP, you add a third dimension by going FORWARD. Like a computer screen, X and Y coordinates are side-to-side and up-and-down. If you made a volumetric display by adding a third dimension to that, Y would be up and Z would be forward.
I usually think of Z as up, because that’s how stuff based on the physical world usually works. But I can understand why some think of it with Y as up.
Third dimension isn’t up, it’s just not X or Y. We just say “height” or synonyms for it because we say “length and width” for X and Y, even though all axis are just length between vectors proceeding in order of being able to exist, X, Y, then Z.
If you are plotting your perspective, it will run on entirely different coordinates to an object’s coordinates, i.e. Camera vs Object stricture. But in most arts and all math, we tend to model the object and it’s values which we create and assign to it as attributes, not with values of how it should look from various perspectives.
I think that’s the confusion. You could get used to the Z being treated as Y, but it’s incomparable with everything else and you’d have to now confirm with other’s that length and width are X and Z and extrusions from 2D plane are Y. This doesn’t occur much anywhere else. This is the whole premise behind the meme. Arguing between standards when one is universal, the other is niche but those that have only learned the niche one are adamant the universal one is wrong.
Only in a top-down perspective. Most screens are vertically oriented though, meaning the reference 2D plane is left-right-up-down.
You’re mixing up perspective with the object’s actual coordinates system. The “left-right-up-down” are your perspective or computer screen and do not define the axes of the object itself. The object has its own.
If I rotate a map on a table, it’s X and Y don’t suddenly flip. The coordinates belong to the object, I’m just viewing them from a different perspective now.
In mathematics, the Z axis only exists because it’s defined as being perpendicular to an existing plane (the plane X and Y form). The gridlines represent that plane and Z’s extrusion values reference it. Your perspective or viewing angle don’t influence these coordinates at all.
Commonly we face the XY plane down as it’s “floor”. We build things from the ground up. We draw from top down. It’s just how gravity brought the standard around. You can flip it however you want, though. But if you see a grid, that’s a plane and Z is extrusion off that.
By your own logic there is no “up”, only x/y/z, so what’s your complaint?
There is NO mathematical or physical reason why XY should be the floor, that is your own bias.
No. That is not my logic. It’s the logic of Rene Descartes who invented the thing you are trying to talk about.
And because gaslighting attempts online are hilarious, I’ll assume you just didn’t read so good and will repeat myself again; we tend to rest the plane on the floor, as it is in our reality with gravity it is easier to conceive. Like modelling a car, it’s wheels on the screen spend most of the time pointed down.
You don’t have to. You can model it any direction you want, but most people find it easy in an orientation that mimics common perspective. But however you do it, you still can’t have a Z axis without a plane. That’s the point. Grid is plane and plane is needed for Z. If you have a grid on Z it’s representing an infinitely possible slice through extrusion and that’s basically a concept behind some fractals, which introduces a new vector for new XYZ points within.
I know you really want to be right but this is very long-standing foundational and basic stuff we just do. It isn’t my logic or opinion, I’m sharing this knowledge to you, something you can very easily look up yourself right now and forget I even exist—which would be neat.
By that logic the only non-arbitrary dimension is defined by gravity, so the primary axis (X) should be up and down.
Math is not rigid like you are saying: 3D coordinates can be oriented in any direction because they are fundamentally arbitrary. A lot of people a damn lot smarter than you have damn good reasons for using different coordinate systems, and they are mathematically correct.
I’ll leave this here for context (bottom right is the only sane one)
Minecraft being the most influential of them all
There are people who use the top way? WTF?
Minecraft ;)
Technically no, top is right handed but Minecraft uses left handed. Unity, however, is left handed and uses
zy as upNo Unity uses Y as up. Unreal uses Z as up
Sorry, yes, that’s what I meant to say
Printers
In a 2 dimensional graph y is vertical, adding z doesn’t change that.
That’s still just convention. In cartesian systems the only requirement is that x and y are orthogonal.
When you add a third dimension, and additional concern arises being what direction of z is the positive one. You’ll notice the two examples are not the same, if you flip either one so the x/y line up, there is still disagreement about which direction z is pointing.
Z is depth, full stop, and I have my fists raised, Queensbury-style, to anyone who contends otherwise.
